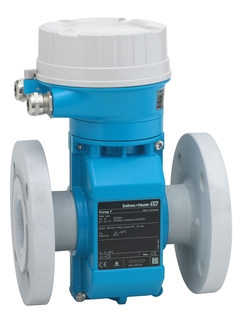

Electromagnetic flowmeter - Proline Promag P 100

Proline Promag P 100
electromagnetic flowmeter

The flowmeter for highest medium temperatures with an ultra-compact transmitter

5P1B
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-
Electromagnetic flowmeter - Proline Promag P 100
  • F
  • L
  • E
  • X
©Endress+Hauser
Heartbeat Technology

Specs at a glance

  • Max. measurement error

    Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
    Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s

  • Measuring range

    4 dm³/min to 9600 m³/h (1 to 44 000 gal/min)

  • Medium temperature range

    Liner material PFA: –20 to +150 °C (–4 to +302 °F)
    Liner material PFA high‐temperature: –20 to +180 °C (–4 to +356 °F)
    Liner material PTFE: –40 to +130 °C (–40 to +266 °F)

  • Max. process pressure

    PN 40, Class 300, 20K

  • Wetted materials

    Liner: PFA, PTFE
    Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium
    Duplex 1.4462 (UNS S31803)

Field of application

Promag P is dedicated to chemical and process applications with corrosive liquids and high medium temperatures. Its ultra-compact transmitter delivers full performance on the smallest footprint and enables seamless system integration, making Promag P 100 the preferred choice for skid builders, equipment manufacturers and system integrators. Heartbeat Technology enables compliance and process safety at all times.

  • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity

  • Dedicated to chemical and process applications with corrosive liquids and high medium temperatures

Device properties

  • Nominal diameter: max. DN 600 (24")

  • All common Ex approvals

  • Liner made of PTFE or PFA

  • Robust, ultra-compact transmitter housing

  • Local display available

Benefits

  • Versatile applications – wide variety of wetted materials

  • Energy-saving flow measurement – no pressure loss due to cross-section constriction

  • Maintenance-free – no moving parts

  • Space-saving transmitter – full functionality on the smallest footprint

  • Time-saving local operation without additional software and hardware – integrated web server

  • Integrated verification – Heartbeat Technology

Videos

  • The Electromagnetic Flow Measuring Principle

  • Introduction of Proline Web server

  • Heartbeat Technology
