Specs at a glance
-
Input
20 analog (max) (U, I, TC, RTD, frequency, pulse)
20 HART (max) (HART, 4…20mA)
14 digital (max) (control, event and counting inputs) -
Output
12 relays (max)
2 analog (max) (I, pulse)
1 transmitter power supply -
Display

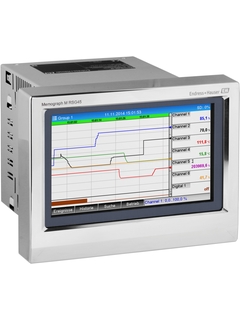

TFT 7" colour graphic display
TFT 7" colour graphic display with touch panel -
Storage/Recording
internal memory
SD card
USB flash drive -
Calculations
Mass/heat quantity
heat quantity difference
Field of application

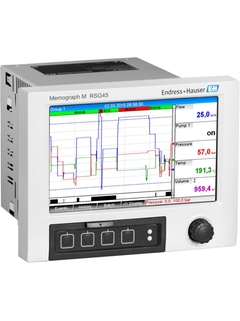

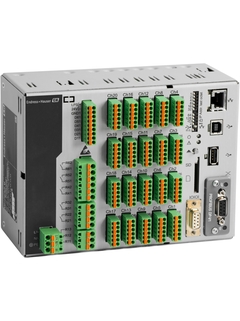

The Advanced Data Manager is a flexible and powerful system for organizing process values. Thanks to its intuitive operation, Memograph M adapts quickly and easily to any application. The process values are clearly presented on the display and logged safely, limits are monitored and analyzed. Via communication protocols, the measured and calculated values can be easily transferred to higher-level systems and plant modules can be interconnected. Also available as DIN rail version without display.
The solution for all your tasks. For example, for:
Process measuring technology
Power stations and energy supply
Steam boiler monitoring/efficiency calculation
Food and pharmaceutical industry
Plant and apparatus engineering and construction; Milk pasteurization plants
Environmental and climate measuring technology; Storm overflow control
Quality assurance and production
Batch analysis; Tele-Alarm functions
iTHERM TrustSens Calibration Monitoring
Testing bays and laboratory applications
Benefits
High degree of data security: tamper-proof data storage and personalized access authorization with electronic signature (FDA 21 CFR 11)
HART input card: HART sensors directly connected provide accurate process values for calculation and logging
HART gateway: time-saving direct access to HART sensors in the field with FieldCare using Memograph M without interrupting the measuring loop
Stainless steel front with touch operation: trouble-free operation in demanding environments such as hygienic or hazardous areas.
DIN rail version: compact device with small dimensions for cabinet mounting or remote field applications.
System capability: supports common fieldbuses (Modbus, Profibus DP, PROFINET, EtherNet/IP) for fast integration into diverse systems
Integrated Web server: remote access to device operation and visualization for lower maintenance costs
WebDAV: files saved on SD card transmitted directly to a PC via HTTP without any additional software.
