Name: iTEMP PCP TMT181
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

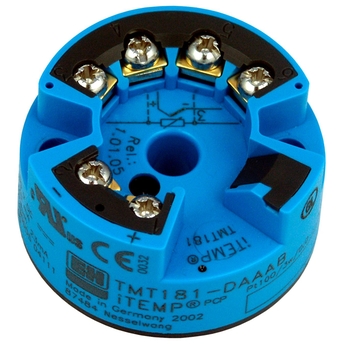

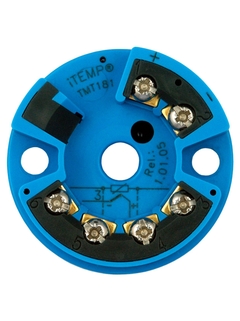

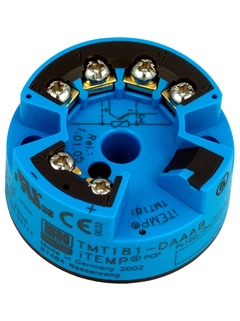

iTEMP TMT181 Temperature head transmitter

Predecessor

THT1
TMC134

TMC138
TMD831

Successor

F

L

E

X
iTEMP TMT71

4-20 mA temperature transmitter as head, field or DIN rail device with one universal sensor input suitable for use in hazardous areas
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

from CHF ??.-

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Input

1 x RTD, TC, Ohm, mV
Output

1 x analog 4...20 mA
Auxiliary power supply

8...35 V DC (standard-version)
8...30 V DC (Ex-version)
Communication

pc-programmable
Installation

Terminal head form B
Accuracy

(Pt100, -50...200 °C) <= 0,2 K
(Pt100, -58...392 °F) <= 0,4 °F
Galvanic isolation

yes
Certification

UL Ex IS, NI
GL marine approval
GOST Ex i
FM IS,NI,Class I,Div.1+2,Group ABCD
CSA IS,NI,Class I,Div.1+2,Group ABCD
ATEX II3G Ex nA IIC T4/T5/T6
ATEX II1G EEx ia IIC T4/T5/T6
ATEX II3D
ATEX II1G EEx ia IIC T6, II3D
ATEX II3G Ex nA IIC T6, II3D
FM+CSA IS,NI,Class I,Div.1+2,Group ABC
CSA General Purpose
EAC Ex ia IIC T6 Ga
GL (German Lloyd)
