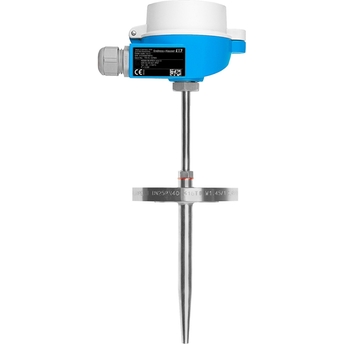

Product picture resistance thermometer TR15

TR15
Modular RTD thermometer

Robust temperature measurement technology especially for gas and steam applications

TR15
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

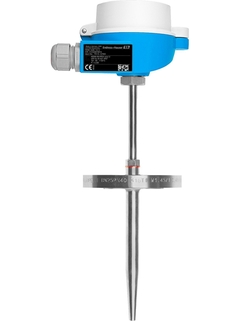

Resistance thermometer TR15
  • F
  • L
  • E
  • X
©Endress+Hauser
Resistance thermometer TR15
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    class A acc. to IEC 60751
    class AA acc. to IEC 60751

  • Response time

    depending on configuration

  • Max. process pressure (static)

    at 20 °C: 400 bar (5.802 psi)

  • Operating temperature range

    PT100 TF iTHERM StrongSens:
    -50 °C ...500 °C
    (-58 °F ...932 °F)
    PT100 WW:
    -200 °C ...600 °C
    (-328 °F ...1.112 °F)
    PT100 TF:
    -50 °C ...400 °C
    (-58 °F ...752 °F)

  • Max. immersion length on request

    up to 30.000,00 mm (1.181,10'')

Field of application

The robust thermometer is designed for use in demanding applications like gas or steam applications e.g. in the Chemical, Oil & Gas and Energy industry. Highest pressures as well as high temperature can be handled by the use of robust protection tubes and special process connections. An optional head transmitter with all common communication protocols makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors.

  • Universal range of application

  • Particularly suitable for steam and gas applications with high process pressures and temperatures

  • Measuring range: -200 to +600 °C (-328 to 1112 °F)

  • Static pressure range up to 400 bar (5800 psi)

  • Degree of protection: up to IP68

Benefits

  • High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths

  • High degree of insert compatibility and design as per DIN 43772

  • Extension neck to protect the head transmitter from overheating

  • Fast response time with reduced/tapered tip form

  • Types of protection for use in hazardous locations: Intrinsic safety (Ex i.a.), non-sparking (Ex nA)

  • Head transmitter with easy selection: Analog output 4 to 20 mA, HART®, PROFIBUS® PA or FOUNDATION Fieldbus™
